Flatness Online Test System Test Machine Tempered Glass Flatness Tester

Name: Flatness Online Test System Test Machine Tempered Glass Flatness Tester
Brand: Lonroy
Price: 1 USD

Quality Flatness Online Test System Test Machine Tempered Glass Flatness Tester for sale

Model Number : LR-111

Place of Origin : China

Brand Name : Lonroy

Certification : ISO ASTM CE

MOQ : 1

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Glass size range to be tested : ≥600mm*600mm

Warranty : 1 year

Power Supply : AC 100-240V

Power : +/-5mdpt

Contact Now

Tempered Glass Flatness Online Test System Test Machine Tempered Glass Flatness Test

1. Introduction
Using a visual optical system composed of high-speed cameras and powerful software, the Vision System can accurately measure the waveform curve of the glass surface on a horizontal tempered production line, thereby calculating the waveform bend, bow bend, edge warping and corresponding power (milliphotometers) of the glass, and evaluating the flatness of the glass by the peak and valley value (PV value) of the wave bend, and evaluating the optical deformation of the glass. Through real-time measurement of these parameters, glass plants can optimize the tempering process and produce high-quality glass that meets leading architectural design specifications. Meanwhile, the system can measure the length and width dimensions of the glass online.

2. Main Technical Parameters

Measurement accuracy	1μm
Test repetition	(95% confidence interval)
Power	+/-5mdpt
PV value	+/-3μm
Equipment size	Customized according to the on-site installation location
Glass size range to be tested	≥600mm*600mm
Measurement speed	Adaptive tempering furnace speed

Test results displayed on the bottom end of the production line

Product Tags:

Online Flatness Tester

Tempered Glass Flatness Tester

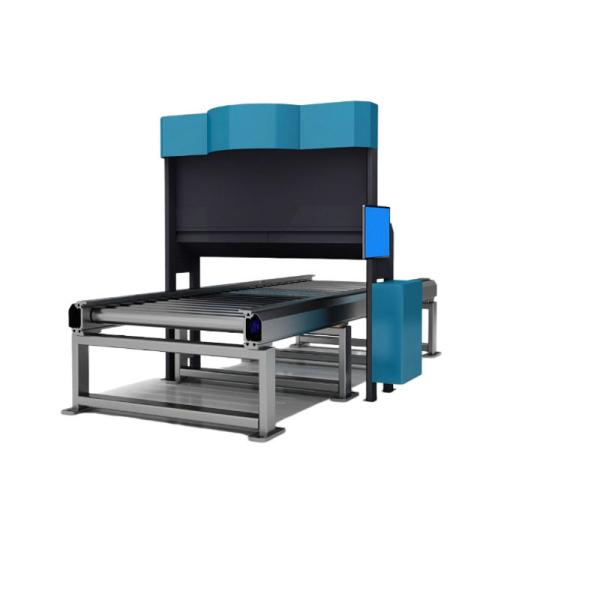

Flatness Online Test System Test Machine Tempered Glass Flatness Tester Images
