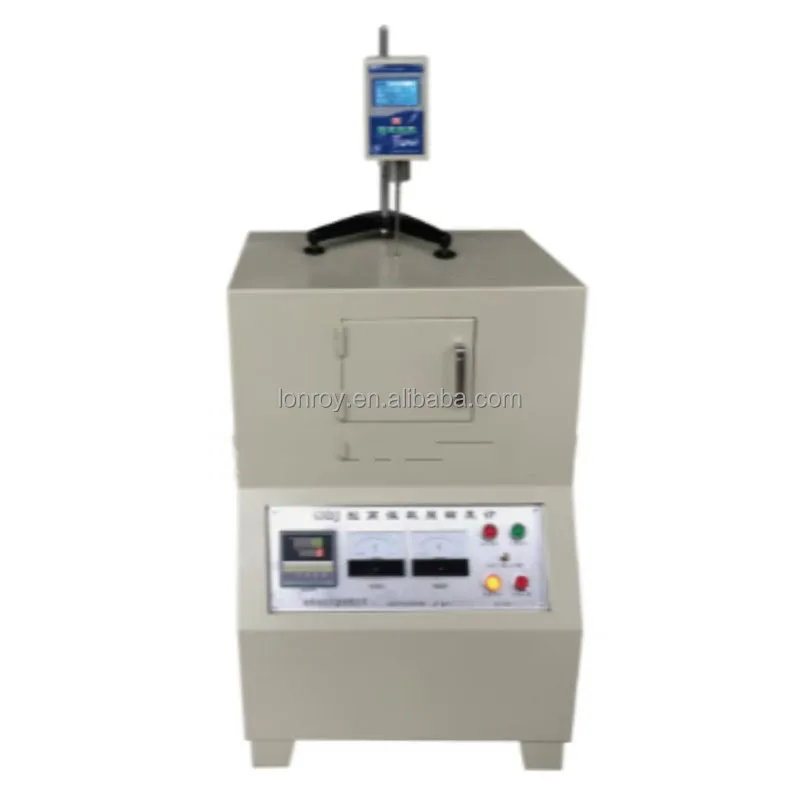

GNDJ High Temperature Melt Viscometer Metal Melt Viscometer Liquid Viscosity Measuring Instrument

Model Number : GNDJ

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Test temperature : 1000ºC

Test range : 0.1cp-10cp

Sample cup material : stainless steel, corundum, graphite, platinum optional

Sample cup size : diameter 35mm, height 100mm

Sample cup cover : Diameter 35mm

Heating rate : 0-50ºC/Min

Temperature control accuracy : 1ºC

Test environment : high purity inert gas protection or different degrees of vacuum environment

Function : Temperature Measurement

Sample cup diameter : 35mm

Sample cup height : 100mm

Viscosity range : 0.1cp-10cp

Operating principle : torsional pendulum vibration attenuation

Measurement method : vibration amplitude and time reduction

Material options : stainless steel, corundum, graphite, platinum

Contact Now

GNDJ High Temperature Melt Viscometer Metal Melt Viscometer Liquid Viscosity Measuring Instrument
1.product introduction
The viscosity of metal melt and the viscous force of chemical molten salt are a main physical quantity to quantitatively solve the problems related to liquid flow behavior and reaction kinetics in metallurgical processes, such as the floating separation process of small bubbles of liquid metal and non-metal inclusion, or the continuous detection of the viscosity and the change of the corresponding composition of molten slag in the reaction process of molten slag and metal. Key information on the slag/metal reaction rate can be obtained.
If a container containing a liquid is suspended on a thin suspension line and the container is given an initial torsion to make it vibrate freely, the torsional pendulum vibration of the system will slowly attenuate because the internal friction of the liquid consumes vibration energy. According to this principle, the data of liquid viscosity can be obtained by measuring the reduction of vibration amplitude and vibration time of different liquid samples.

Product Parameters

GNDJ High Temperature Melt Viscometer Metal Melt Viscometer Liquid Viscosity Measuring Instrument
2.Product Parameter

Test temperature 1000ºC
Test range 0.1cp-10cp
Sample cup material stainless steel, corundum, graphite, platinum optional
Sample cup size
 diameter 35mm, height 100mm
Sample cup cover
 Diameter 35mm
Heating rate
 0-50ºC/Min
Temperature control accuracy
 1ºC

Test environment: high purity inert gas protection or different degrees of vacuum environment
