FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester

Name: FBS900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester
Brand: LONROY
Price: 1 USD

Quality FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester for sale

Brand Name : LONROY

Place of Origin : Guangdong, China

Model Number : FBS-900

MOQ : 1

Q value range : 5~999

Q value grading : 30, 100, 300, 999, automatic shift

Frequency range : 10kHz~52MHz

Inherent error : ≤5%±2% (10kHz~10MHz), ≤7%±2% (10MHz~52MHz)

Working error : ≤7%±2% (10kHz~10MHz), ≤10%±2% (10MHz~52MHz)

Capacitance range : 1~460pF

Capacitor adjustment : 40~500pF

Capacitance accuracy : ±1.5pF (<150pF), ±1% (>150pF)

Fine-tuning capacity : -3pF ~ 0 ~ +3pF

Fine-tuning accuracy : ±0.2pF

Oscillation frequency : 10kHz~100MHz

Frequency error : 2×10⁻⁴±1

Power supply : 220V, 50Hz

Power consumption : 25W

Net weight : 7 kg

Dimensions : 380×132×280 mm

Contact Now

FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal conductivity tester
1.Product introduction
Measure the dielectric constant and dielectric loss coefficient (loss Angle tangent value) of the insulating material. Dielectric loss and permittivity are important physical properties of various nonmetallic oxides, plates, ceramics, mica, glass, plastics, etc. The factors affecting the dielectric loss and permittivity can be further understood through the measurement, and the basis for improving the properties of materials can be provided. The instrument is used in research institutes, schools, factories and other units to study the properties of new inorganic materials.

FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal conductivity tester
2. Product Parameter

2.1 Q value measurement

A, Q value measurement range: 5~999
B, Q value range grading: 30, 100, 300, 999, automatic shift
C. Nominal error
Frequency range: 10kHz~10MHz;
Inherent error: ≤5%± 2% of the full value; Working error: ≤7%± 2% of the full value;
Frequency range: 10MHz~52MHz
Inherent error: ≤7%± 2% of the full value; Working error: 107%± 2% of full value.
2.2 Capacitance measurement
Measurement range: 1~460pF(see usage rules for capacitance measurement above 460pF);
Capacitance adjustment range: main capacitor: 40~500pF;
Accuracy: below 150pF ±1.5pF; Above 150pF ±1%;
Fine-tuning capacity: -3pF ~ 0 ~ +3pF;
Accuracy: ±0.2pF.
2.3 Oscillation frequency
a. Oscillation frequency range: 10kHz~100MHz;
b. Frequency grading: 10~99 kHz 100~999 kHz
1.0~ 9.99MHz 10~52MHz.
C. Frequency error: 2×10-4±1 word
4.Q qualified indication preset function, preset range: 5~999
2.4 Normal working conditions of the instrument
a. Ambient temperature: 0ºC~+40ºC;
b. Relative humidity: <80%;
C. Power supply: 220V, 50Hz.
2.5 Sample size

Wafer shape	thickness 2±0.5mm, diameter Φ30~40mm (ε<12), Φ25~35mm (ε=12~30), Φ15~20mm (ε>30)
Power consumption	about 25W;
Net weight	about 7 kg
Dimensions	(l×b×h) mm: 380×132×280.

2.6 Unique technology
The instrument automatically deducts the residual inductance and test lead inductance. Greatly improve the measurement accuracy. Large capacitance values are directly measured and displayed.
Digital micromeasuring device, direct reading value.
2.7 Configuration listing
One host computer
A set of test fixtures and a set of inductors
A power cord
Two fuse

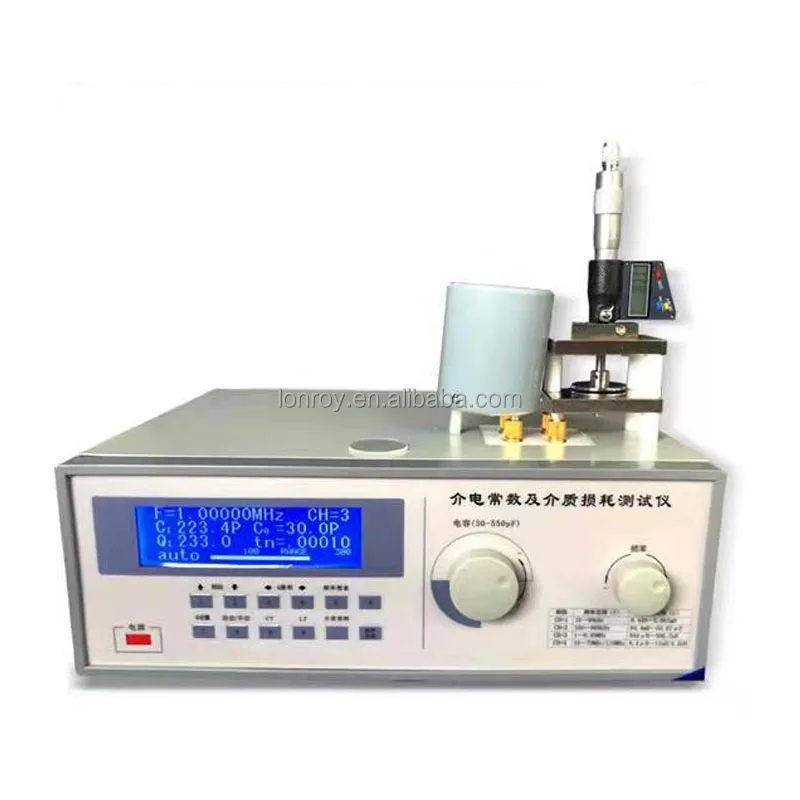

FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester Images
